Spring

[Spring] 프로젝트 생성 + 설정

아잠만_ 2024. 7. 19. 10:40

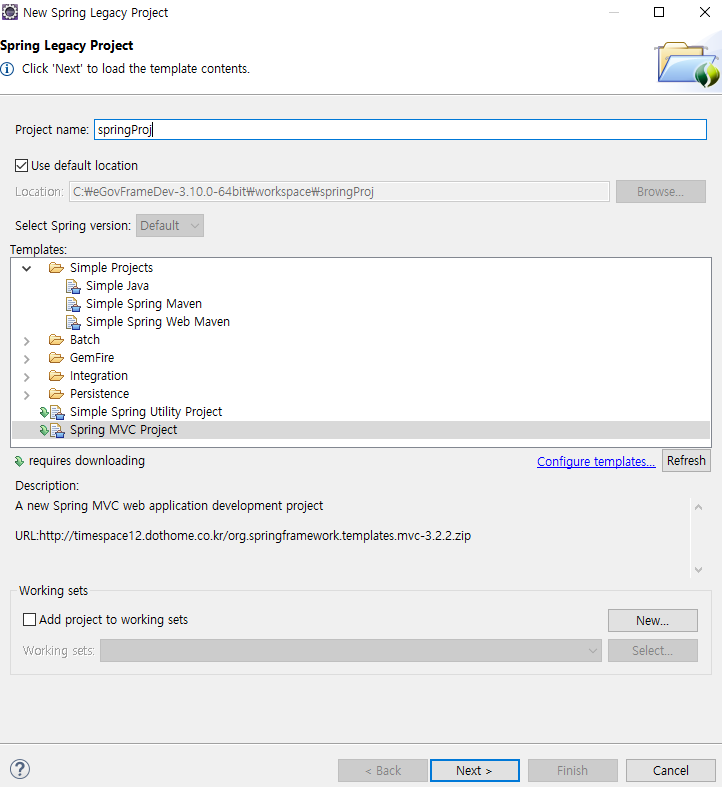

프로젝트 생성 & 환경 설정

만약 Spring MVC Project가 없을 경우에 워크스페이스에

.metadata\.plugins\org.springsource.ide.eclipse.commons.content.core

https-content.xml
0.02MB

해당 파일을 넣을 것

Next로 가서 패키지 이름 생성 해줄것 (kr.or.ddit)

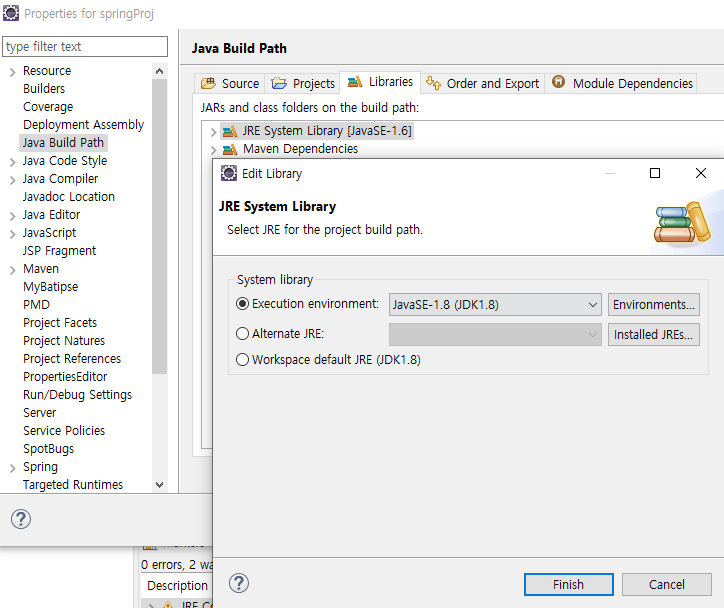

라이브러리 설정 - JAVA

라이브러리 설정 - 서버

톰캣 설정

서버 설정

톰캣 설정 후

포트 80변경
주소 설정

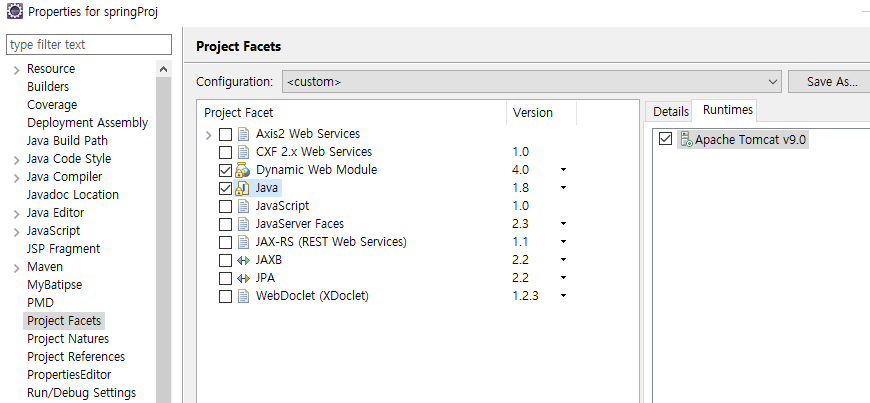

Project Facets 설정

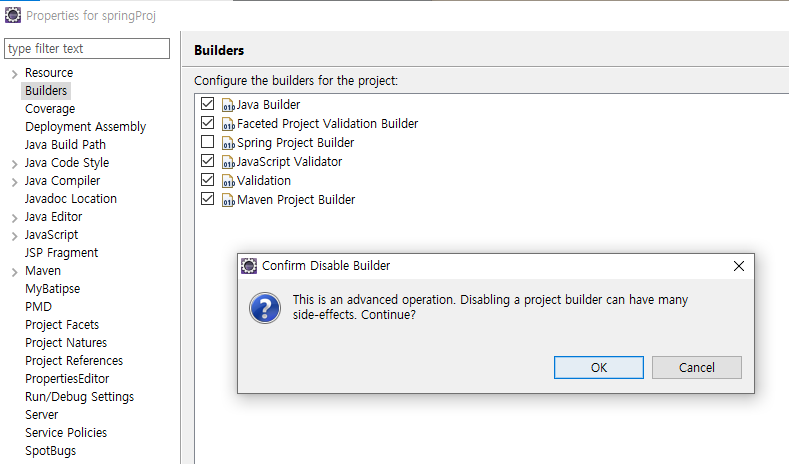

속도 빠르게하는법

pom.xml 변경

pom.xml
메이븐(maven)은 프로젝트를 생성하고 라이브러리를 관리하고 빌드하는 것까지 프로젝트의
라이프 사이클을 관리하는 소프트웨어.
즉, 자동으로 라이브러리를 사용할 수 있게 해줌

java버전과 스프링프레임워크 버전 변경

<java-version>1.8</java-version>
<org.springframework-version>5.2.5.RELEASE</org.springframework-version>
더보기
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/maven-v4_0_0.xsd">
	<!--
	pom.xml
	메이븐(maven)은 프로젝트를 생성하고 라이브러리를 관리하고 빌드하는 것까지 프로젝트의
      라이프 사이클을 관리하는 소프트웨어.
       즉, 자동으로 라이브러리를 사용할 수 있게 해줌
	 -->
	<modelVersion>4.0.0</modelVersion>
	<groupId>kr.or</groupId>
	<artifactId>ddit</artifactId>
	<name>springProj</name>
	<packaging>war</packaging>
	<version>1.0.0-BUILD-SNAPSHOT</version>
	<properties>
		<java-version>1.8</java-version>
		<org.springframework-version>5.2.5.RELEASE</org.springframework-version>
		<org.aspectj-version>1.6.10</org.aspectj-version>
		<org.slf4j-version>1.6.6</org.slf4j-version>
	</properties>
	<dependencies>
		<!-- Spring -->
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-context</artifactId>
			<version>${org.springframework-version}</version>
			<exclusions>
				<!-- Exclude Commons Logging in favor of SLF4j -->
				<exclusion>
					<groupId>commons-logging</groupId>
					<artifactId>commons-logging</artifactId>
				 </exclusion>
			</exclusions>
		</dependency>
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-webmvc</artifactId>
			<version>${org.springframework-version}</version>
		</dependency>

		<!-- AspectJ -->
		<dependency>
			<groupId>org.aspectj</groupId>
			<artifactId>aspectjrt</artifactId>
			<version>${org.aspectj-version}</version>
		</dependency>

		<!-- Logging -->
		<dependency>
			<groupId>org.slf4j</groupId>
			<artifactId>slf4j-api</artifactId>
			<version>${org.slf4j-version}</version>
		</dependency>
		<dependency>
			<groupId>org.slf4j</groupId>
			<artifactId>jcl-over-slf4j</artifactId>
			<version>${org.slf4j-version}</version>
			<scope>runtime</scope>
		</dependency>
		<dependency>
			<groupId>org.slf4j</groupId>
			<artifactId>slf4j-log4j12</artifactId>
			<version>${org.slf4j-version}</version>
			<scope>runtime</scope>
		</dependency>
		<dependency>
			<groupId>log4j</groupId>
			<artifactId>log4j</artifactId>
			<version>1.2.15</version>
			<exclusions>
				<exclusion>
					<groupId>javax.mail</groupId>
					<artifactId>mail</artifactId>
				</exclusion>
				<exclusion>
					<groupId>javax.jms</groupId>
					<artifactId>jms</artifactId>
				</exclusion>
				<exclusion>
					<groupId>com.sun.jdmk</groupId>
					<artifactId>jmxtools</artifactId>
				</exclusion>
				<exclusion>
					<groupId>com.sun.jmx</groupId>
					<artifactId>jmxri</artifactId>
				</exclusion>
			</exclusions>
			<scope>runtime</scope>
		</dependency>

		<!-- @Inject -->
		<dependency>
			<groupId>javax.inject</groupId>
			<artifactId>javax.inject</artifactId>
			<version>1</version>
		</dependency>

		<!-- Servlet -->
		<dependency>
			<groupId>javax.servlet</groupId>
			<artifactId>servlet-api</artifactId>
			<version>2.5</version>
			<scope>provided</scope>
		</dependency>
		<dependency>
			<groupId>javax.servlet.jsp</groupId>
			<artifactId>jsp-api</artifactId>
			<version>2.1</version>
			<scope>provided</scope>
		</dependency>
		<dependency>
			<groupId>javax.servlet</groupId>
			<artifactId>jstl</artifactId>
			<version>1.2</version>
		</dependency>

		<!-- Test -->
		<dependency>
			<groupId>junit</groupId>
			<artifactId>junit</artifactId>
			<version>4.7</version>
			<scope>test</scope>
		</dependency>
	</dependencies>
    <build>
        <plugins>
            <plugin>
                <artifactId>maven-eclipse-plugin</artifactId>
                <version>2.9</version>
                <configuration>
                    <additionalProjectnatures>
                        <projectnature>org.springframework.ide.eclipse.core.springnature</projectnature>
                    </additionalProjectnatures>
                    <additionalBuildcommands>
                        <buildcommand>org.springframework.ide.eclipse.core.springbuilder</buildcommand>
                    </additionalBuildcommands>
                    <downloadSources>true</downloadSources>
                    <downloadJavadocs>true</downloadJavadocs>
                </configuration>
            </plugin>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>
                <version>2.5.1</version>
                <configuration>
                    <source>1.6</source>
                    <target>1.6</target>
                    <compilerArgument>-Xlint:all</compilerArgument>
                    <showWarnings>true</showWarnings>
                    <showDeprecation>true</showDeprecation>
                </configuration>
            </plugin>
            <plugin>
                <groupId>org.codehaus.mojo</groupId>
                <artifactId>exec-maven-plugin</artifactId>
                <version>1.2.1</version>
                <configuration>
                    <mainClass>org.test.int1.Main</mainClass>
                </configuration>
            </plugin>
        </plugins>
    </build>
</project>

pom.xml이 수정되면 Maven빌드를 통해 변경된 Maven 내용을 프로젝트에 반영해야 함

apply

해당 console이 뜨면 정상적으로 pom.xml이 업데이트된 것을 확인할 수 있다

web.xml설정 (프로젝트) - 버전 변경+필터 추가

<?xml version="1.0" encoding="UTF-8"?>
<web-app version="4.0" xmlns="http://java.sun.com/xml/ns/javaee"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://java.sun.com/xml/ns/javaee https://java.sun.com/xml/ns/javaee/web-app_4_0.xsd">

	<!-- The definition of the Root Spring Container shared by all Servlets and Filters -->
	<context-param>
		<param-name>contextConfigLocation</param-name>
		<param-value>/WEB-INF/spring/root-context.xml</param-value>
	</context-param>

	<!-- Creates the Spring Container shared by all Servlets and Filters -->
	<listener>
		<listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
	</listener>

	<!-- Processes application requests -->
	<servlet>
		<servlet-name>appServlet</servlet-name>
		<servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
		<init-param>
			<param-name>contextConfigLocation</param-name>
			<param-value>/WEB-INF/spring/appServlet/servlet-context.xml</param-value>
		</init-param>
		<load-on-startup>1</load-on-startup>
	</servlet>

	<servlet-mapping>
		<servlet-name>appServlet</servlet-name>
		<url-pattern>/</url-pattern>
	</servlet-mapping>

<!-- 한글 처리
	웹 브라우저(크롬)에서 서버(톰캣)로 보내는 요청(Requeset)과 그 반대 방향인 응답(Response)을
      모두 UTF-8로 고정하기 위해 인코딩 필터를 설정함
-->
   <filter>
      <filter-name>encodingFilter</filter-name>
      <filter-class>
         org.springframework.web.filter.CharacterEncodingFilter
      </filter-class>
      <init-param>
         <param-name>encoding</param-name>
         <param-value>UTF-8</param-value>
      </init-param>
      <init-param>
         <param-name>forceEncoding</param-name>
         <param-value>true</param-value>
      </init-param>
   </filter>
   <filter-mapping>
      <filter-name>encodingFilter</filter-name>
      <!-- 모든 요청에서 -->
      <url-pattern>/*</url-pattern>
   </filter-mapping>
</web-app>

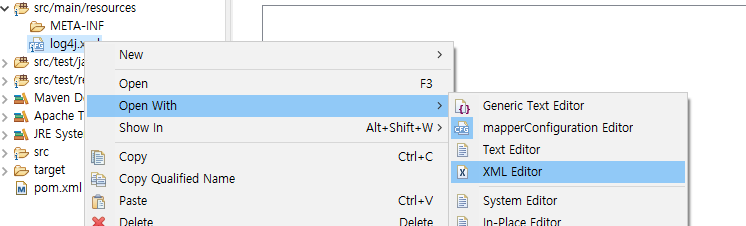

log4j - main 설명

(ctrl+shift+R 을 통한 검색)


   appender : 전달된 로그를 어디에 출력할지 결정(콘솔, 파일 기록, DB 저장)
   priority : 로그 레벨
      - fatal : 심각한 오류 발생
      - error : 요청 처리 중 문제 발생
      - warn : 프로그램 실행에는 문제가 없으나 오류 발생 경고
      - info : 상태변경 등 정보성 메시지
      - debug : 개발 시 디버깅 용도*
      - trace : 상세한 이벤트 용도
해당 root에서 변경이 가능

<root>
<priority value="warn" />
<appender-ref ref="console" />
</root>

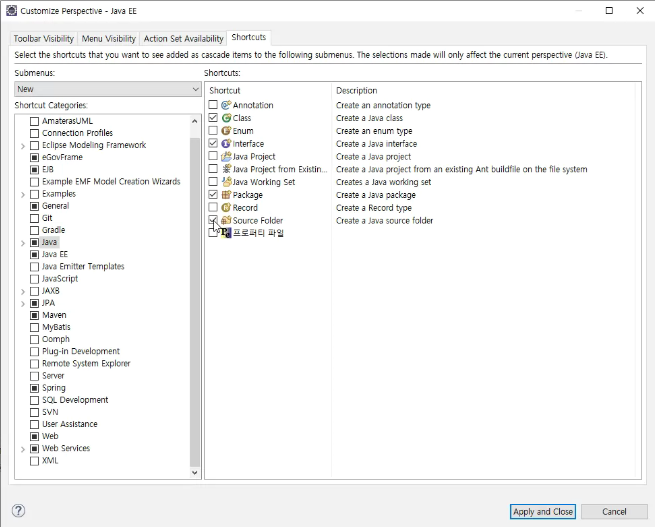

new 설정 변경 (shortcut설정)
